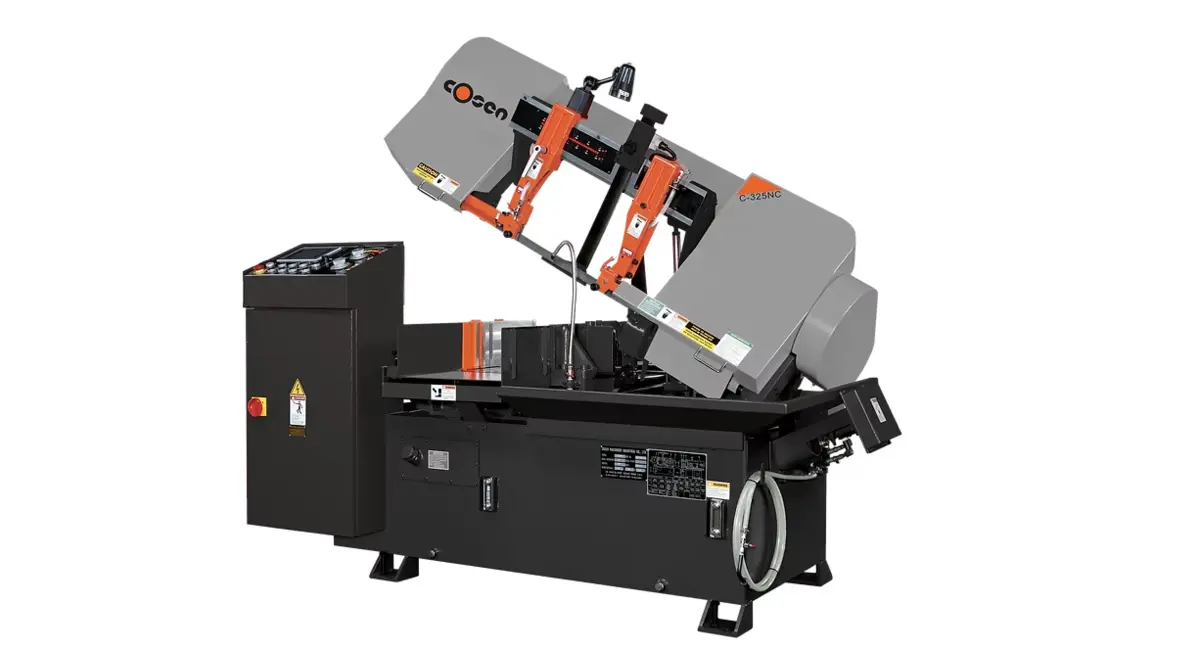

COSEN C-325NC Fully Automatic Scissor Style Band Saw

Horizontal Band Saws
Manufacturer:
COSEN
Model:
C-325NC
Condition:
Build To Order
Machine Features: Hydraulic cylinder supports the saw head with ball joint Gearbox designed to accept high lateral pressure (no thermal distortion) Inverter blade drive system which allows infinitely variable blade speeds 5.7” HMI touchscreen Adjustable flood coolant system Motor driven, synchronized wire blade brush Carbide blade guides and bearing provides additional blade support Rigid cast-iron guide arms Automatic hydraulic blade tensioning device Cast-iron hydraulic vise Split vise jaw for reduced burr Save-A-Blade feature Precision feed pressure and feed rate dual valve system for optimal cutting performance Computer controlled multiple indexing up to 999” max length Included Accessories Blade “clip” device eases blade changing when necessary by holding the blade on the band wheel during installation, making it very easy for one person to change the blade. Adjustable fence to support bundled cut-off stock Additional flushing hose for cleaning Built in work light Bi-metal saw blade Tool box with tools, leveling pads, and an additional wire brush Operation & parts manual Full stroke vises Double retracting vises Hydraulic powered chip auger
Dimensions91"82"x53"91"82"x53"
Weight3,836 LBS3,836 LBS

Maximum Cutting Capacity Round 12.7”
Square 12.7” x 12.7”
Rectangular 12.7” x 14.9”
Bundle Capacity Width 7.4” to 11.8”
w/ optional top clamps Height: 2.7” to 5.5”
Remnant Piece 2”
Blade Variable Speed 60 - 328 fpm
Size 12’ 6.4” x 1.25” x .042”
Motor Saw Blade 5 HP
Hydraulic 1 HP
Coolant 1/8 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke 0” to 15.8”
Multiple Stroke Indexing 0” to 999”
(Automatic kerf compensation)
Weight 3,836 LBS
Power 230V, 3 PH, 60 Hz
(460, 3 PH, 60 Hz Option)
Floor Space 91” x 82” x 53”
Work Bed Height 28.7”
