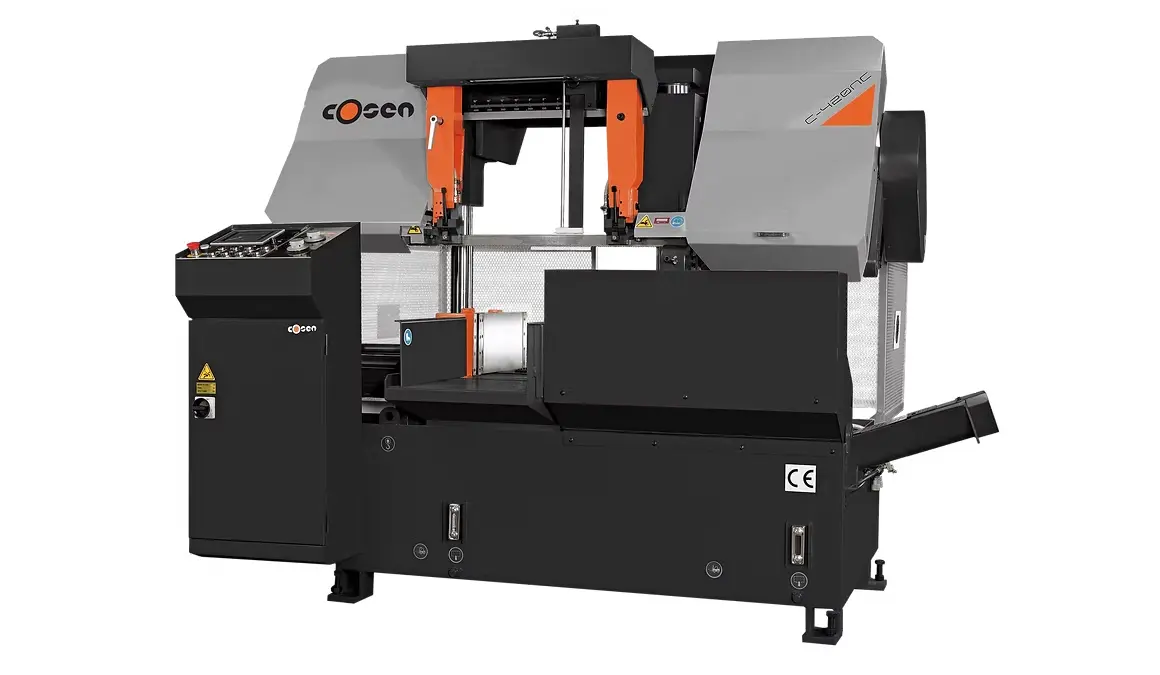

COSEN C-420NC Fully Automatic Dual Column Band Saw

Machine Features:
Hydraulic dual column design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7” HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999” max length

Included Accessories
CE Certified Upgrade with enhanced safety features
Blade “clip” device eases blade changing when necessary by holding the blade on the band
wheel during installation, making it very easy for one person to change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Mitsubishi Touch Screen Control w/ Cosen V_Drive
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full stroke vises
Double retracting vises
Hydraulic powered chip auger
Blade vibration dampener
Saw frame height encoder

Machine Specifications:
Maximum Cutting Capacity Round 16.5”
Square 16.5” x 16.5”
Rectangular 16.5” x 16.5”
Bundle Width: 7.4” - 14.1”
w/ optional top clamps Height: 3.9” - 7”
Remnant Piece 2.4”
Blade Variable Speed 50 – 383 fpm
Size 15'7.8" x 1.5" x 0.05"
Motor Saw Blade 10 HP
Hydraulic 2 HP
Coolant 1/4 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke 0” to 19.8”
Multiple Stroke Indexing 0” to 999”
(Automatic kerf compensation)
Weight 5,183 LBS
Power 230V, 3 PH, 60 Hz
(460, 3 PH, 60 Hz Option)

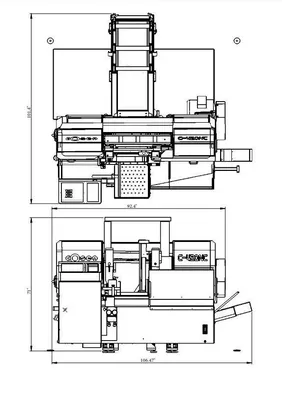

Floor Space 101" x 95" x 70"
Work Bed Height 28.9”
