| Dimensions | 85"x63"x59" | 85"x63"x59" |
| Weight | 2535 | 2535 |

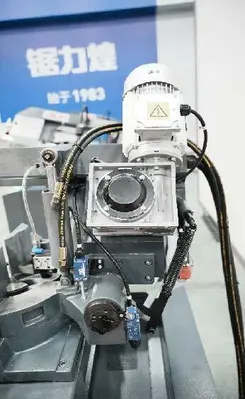

VFD drive motor with wormbox transmission.
Variable vise pressure

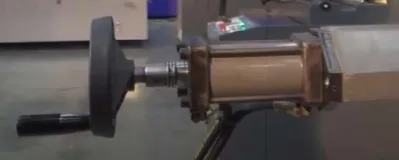

Hydraulic full stroke vise clamp.
LED Work Light
Feed rate system
Power driven band cleaning brushes.
One (1) complimentary Bi Metal saw blade.
Band door interlocks.
Blade breakage detector.
Coolant tank with electric pump for blade lubrication.

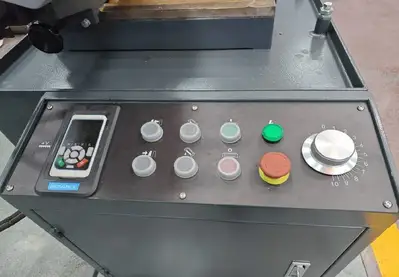

Operator control panel for machine functions.
Saw Blade:
Indexer:
Multiple Stroke 240"
Single Index Stroke 19.7"
Multiple Stroke 240"
Band Drive:
Remnant Size 13"
Hydraulic System:
Coolant System: Flood Yes / Mist Lubricator No
Voltage Requirement 220V-60Hz-3ph
Motor Hp .12 Hp
W x L X H 85" x 63" x 59"
Material Pass Height 35"
Machine Weight 2,535 lbs.
Total Amp Draw (FLA) 8AMP
Motor 1Hp
Reservoir Size 6 Gallon
Standard Equipment
• 10" color touch screen.
