Equipment
FABRICATION
Tube Laser Cutting

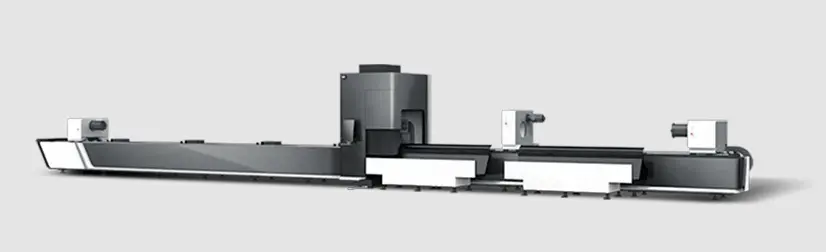

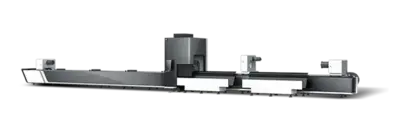

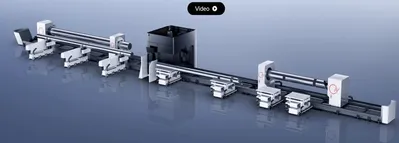

Bodor M3 Fiber Laser Tube Cutting Machine
Unavailable

Bodor M3 Fiber Laser Tube Cutting Machine

Tube Laser Cutting
Manufacturer:
BODOR
Model:
M3
Condition:
Build To Order
M3’s 4-chuck mechanism enables hands-free, high-precision cutting — no manual intervention needed. This creates a secure, low-cost operating environment, keeping personnel safe and reducing labor expenses. Tackle tough metal tube-cutting tasks with ease. M3 handles diameters up to 530 mm, making it ideal for heavy-duty processing and diverse industrial needs. Minimize waste from the start. M3 maximizes material utilization during operations, cutting scrap and boosting cost-effectiveness — every piece of material is used to its full potential.
ControlCNC (BodorThinker)CNC (BodorThinker)
Weight5,909 LBS5,909 LBS

"Round tube-Φ25-Φ356mm
Square tube- 25 - □356mm
Rectangular tube- 25mm≤Side length≤356mm
angle steel- 3#-22#
channel steel - 5#-22#
I-beam 10#-22#

pneumatic chuck (4 Chucks)

File Format:
2D Format: DXF, DWG,
3D Format: IGS, IGES, STEP, STP, G Code

Power Requirements: 220V, 440V, 480V 60 HZ 3 Phase (Up to Client's power requirement)

This equipment is currently unavailable. Similar equipment available now is shown below.
